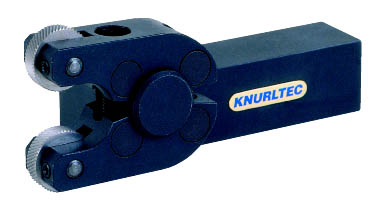

For use on CNC lathes, autos and others. Ideal for axial feeding with convex style knurls. Available in Metric and Imperial square shanks and Imperial round shanks, offset and in line.

Using the knurls:	AA + AA	BL 30º + BR 30º	BL 45º + BR 45º
Knurling pattern:

Information on Convex knurls

Offset and Inline round shank tools

Reference	Knurl Size	A	B	C	D	E	F
R2-12	20 x 6 x 6	12	65	60	19	100	0-22
R2-16	20 x 6 x 6	16	65	60	19	100	0-22
R2-20	20 x 6 x 6	20	65	60	19	100	0-22
R2-25	20 x 6 x 6	25	65	60	19	100	0-22
