knurltec.com - Pressure knurling

For use on Autos, multi-spindles, sliding head and others. Knurling capacity 1 - 10mm. Available in shank sizes 8 - 12mm. Left and right handed models available.

Characteristics:
Straddle type tool. Recommended for knurling pattern type RAA, RGE 30º and RGE 45º.

-Adjustable symmetrically to the component Ø by means of threaded spindle.

-Does not exert pressure on the lathe bearings as the tool absorbs the stress.

-Eliminates the risk of torque in the workpiece, as the pressure of the knurls compensate each other.

-Has a self-centring system which offsets the differences in the height between the chuck axis and the tool-holder turret.

Capacity: 1-10mm

Type of machine:
Automatic, multispindle, sliding head lathes and others.

Instructions for use

Using the knurls:	AA + AA	BL 30º + BR 30º	BL 45º + BR 45º
Knurling pattern:

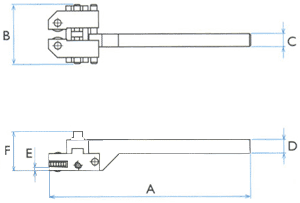

Reference	Knurl Size	A	B	C	D	E	F	kg
M20C-08R	10 x 4 x 4	120	35	8	12	1.5	24	0.170
M20C-08L	10 x 4 x 4	120	35	8	12	1.5	24	0.170
M20C-10R	10 x 4 x 4	120	35	10	12	1.5	24	0.180
M20C-10L	10 x 4 x 4	120	35	10	12	1.5	24	0.180
M20C-12R	10 x 4 x 4	120	35	12	12	1.5	24	0.190
M20C-12L	10 x 4 x 4	120	35	12	12	1.5	24	0.190
