For use on CNC lathes and others. Knurling capacity 5 - 50mm. Available in shank sizes 20 and 25. Left and right handed models available.

Characteristics:
Straddle type tool. Recommended for knurling pattern type RAA, RGE 30º and RGE 45º.

-Adjustable symmetrically to the component Ø by means of threaded spindle.

-Does not exert pressure on the lathe bearings as the tool absorbs the stress.

-Eliminates the risk of torque in the workpiece, as the pressure of the knurls compensate each other.

-Has a self-centring system which offsets the differences in the height between the chuck axis and the tool-holder turret.

Type of machine:
CNC lathes and others.

Instructions for use

Using the knurls:
AA + AA
BL 30 + BR 30
BL 45 + BR 45
Knurling pattern:
RAA
RGE 30
RGE 45

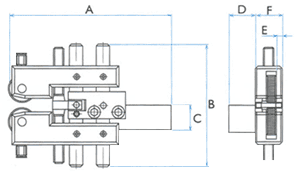

Reference
Knurl Size
A
B
C
D
E
F
kg
M20-20R
162
128
20
25
4
26
2.100
M20-20L
162
128
20
25
4
26
2.100
M20-25R
162
128
25
25
4
26
2.100
M20-25L
162
128
25
25
4
26
2.100
