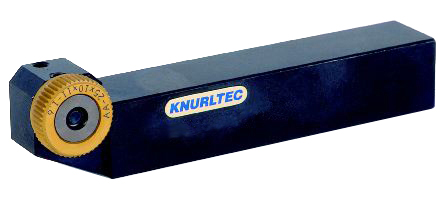

Square shank tool, which allows the knurl wheel to be mounted on either side of the head, for left or right hand use. Applicable to all kinds of knurling patterns and for use up to a shoulder. Recommended for knurling pattern type RAA.

Characteristics:
This tool allows the knurl wheel to be mounted on either side of the head, which allows left or right handed use. Applicable to all kinds of knurling patterns and for use up to a shoulder. Recommended for knurling pattern type RAA..

Type of machine:
CNC lathes and others.



Using the knurl:
AA
BR 30º
BR 45º
BL 30º
BL 45º
GE 30º
GE 45º
GV 30º
GV 45º
Knurling pattern:
RAA
RBL 30º
RBL 45º
RBR 30º
RBR 45º
RGV 30º
RGV 45º
RGE 30º
RGE 45º

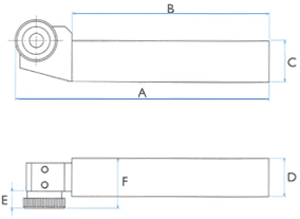

Reference
Knurl Size
A
B
C
D
E
F
kg
K8-20
150
125
20
25
10
32
0.634
K8-25
150
125
25
25
10
32
0.762
