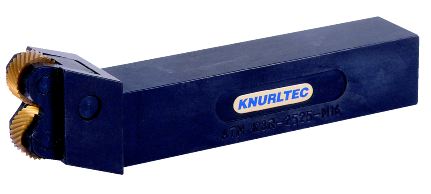

Original Knurltec K3-16 for high quality knurling economically, using lapped tooth profile knurls to impart a better quality knurl.
K3-20 versions now available, uses our standard 20 x 6 x 6 knurls and convex knurls for superior axial feeding

Knurling capacity: 8 - 200mm



Using the knurls:
AA + AA
BL 30º + BR 30º
BL 45º + BR 45º
Knurling pattern:
RAA
RGE 30º
RGE 45º





Reference
Knurl Size
A
B
C
D
E
F
G
kg
K3-16R-16
16 x 7.5 x 6.35
100
70
16
16
7.5
25
8.75
0.255
K3-20R-16*
16 x 7.5 x 6.35
125
90
20
20
7.5
25
8.75
0.420
K3-20L-16
16 x 7.5 x 6.35
125
90
20
20
7.5
25
8.75
0.420
K3-25R-16*
16 x 7.5 x 6.35
150
115
25
25
7.5
32
8.25
0.730
K3-25L-16
16 x 7.5 x 6.35
150
115
25
25
7.5
32
8.25
0.730
K3-20R-20*
20 x 6 x 6
125
90
20
20
6
25
9
0.420
K3.20-25R-20*
20 x 6 x 6
150
115
25
25
6
32
9
0.730

* C models
