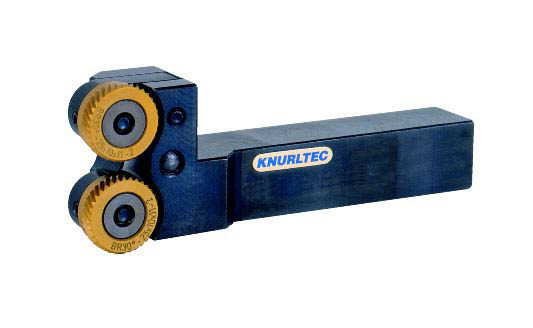

Square shank tool with twin knurls for knurling up to a shoulder. Pivoting head to guarantee centre line, recommended for knurling pattern RAA RGE30 and RGE45

Characteristics:
Pivoting head tool for knurling patterns up to a shoulder. Recommended for knurling pattern types RAA, RGE 30º and RGE 45º.
Capacity 8 - 200

Type of machine:
CNC lathes and others.

Using the knurls:	AA + AA	BL 30º + BR 30º	BL 45º + BR 45º
Knurling pattern:

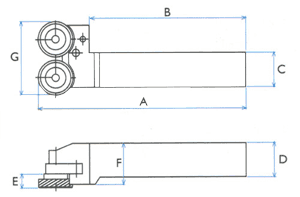

Reference	Knurl Size	A	B	C	D	E	F	G	kg
K9-20R	25 x 10 x 15/11	150	112	20	25	10	32	55	1.072
K9-20L	25 x 10 x 15/11	150	112	20	25	10	32	55	1.176
K9-25R	25 x 10 x 15/11	150	112	25	25	10	32	55	1.060
K9-25L	25 x 10 x 15/11	150	112	25	25	10	32	55	1.168
